Subsea Imaging & Laser System
TRACKER
The CATHX TRACKER is our most compact imaging and measurement system that captures high-definition imagery and millimetre accurate measurement information at speeds of up to 5 knots.
Single Sensor Imaging and Measurement System Delivering Unsurpassed Visual Data

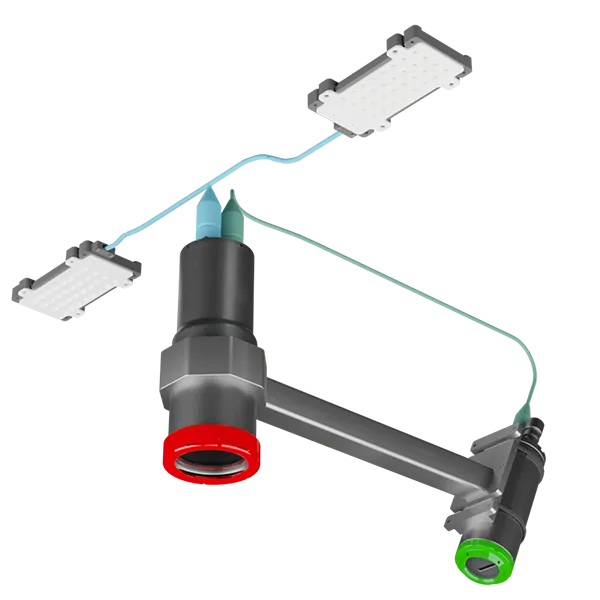

Combining CATHX OCEAN’s patented imaging camera, a powerful 3D laser measurement sensor and efficient LED strobe lights, the TRACKER delivers comprehensive imaging and measurement data to create accurate 3D visualisations of subsea assets.
Single-swath system for small ROVs outputting incomparable high-resolution still imaging and laser profiling.
Technical Features
Superb Imaging & Measurement
Still imaging – HD stills resolution 2048 x 1152 up to 30 fps.
Laser Imaging – 30 lines per second from the green penetrating laser. Dense 3D laser point cloud data synchronised with stills in time and space.
Sequential Imaging – 1 to 5 light pulses per millisecond, interleaved with laser and to allow for high-speed acquisition.
Large Operational Range
Operational heights of up to 7 meters (depending on water conditions). 1:1 swath to height ratio, single-swath system, with swaths of up to 7 meters possible.
High-Precision Outputs
High-resolution still enables millimetre precision. The system operates at distances up to 7 metres and speeds of 5 knots.
Efficiencies
Track Data Year-on-Year
Time-stamped, geotagged, and other sensor information is stored in the image EXIF, enabling year-on-year change analysis.
Reduced Operation Times
CATHX FDI® data capture methodology enables non-stop, high-speed operations, delivering time and cost efficiencies.
Superb Visual Data Quality
High Definition Images with no motion blur and reduction in the effects of marine snow.

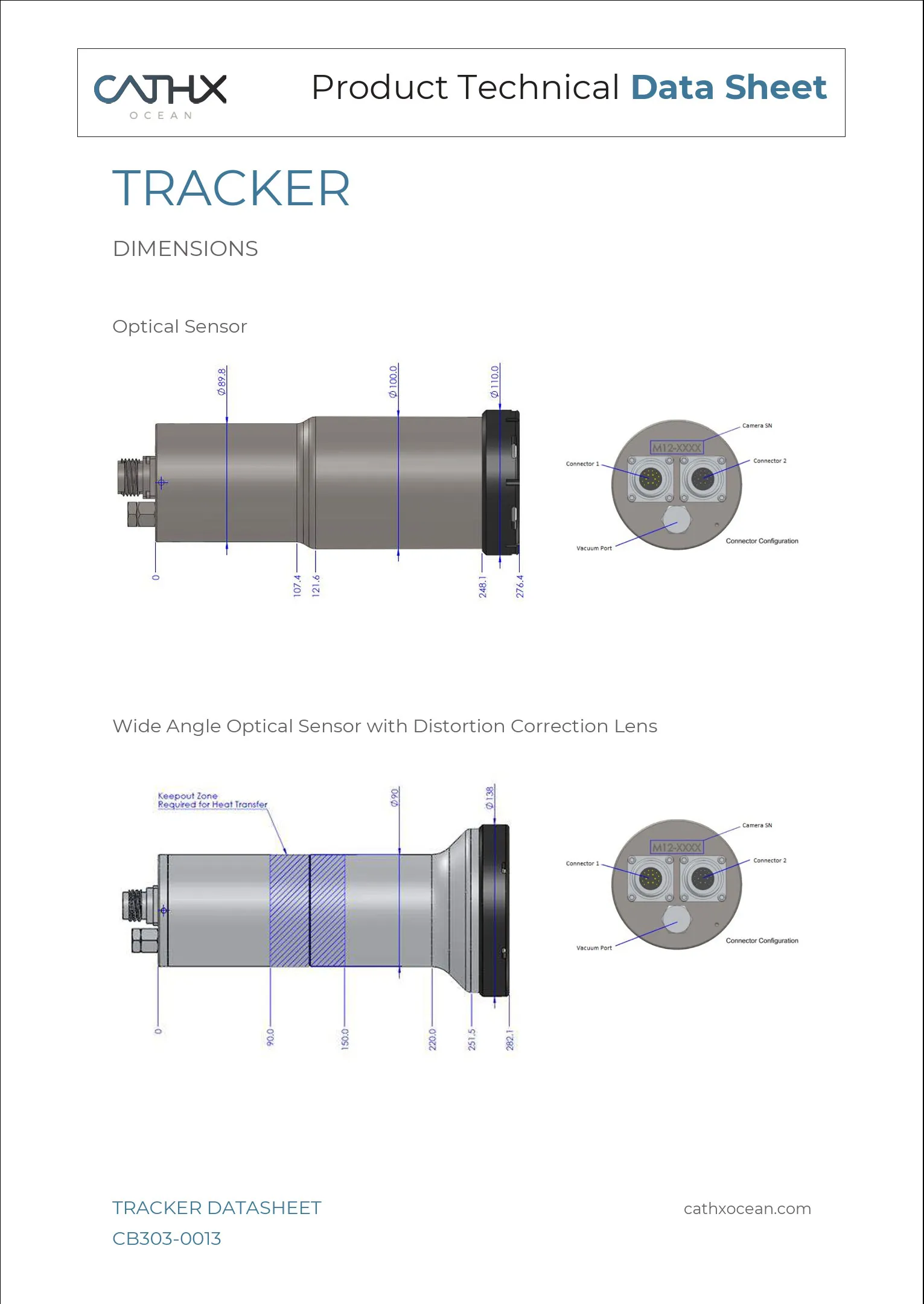

Download the CATHX TRACKER Data Sheet
